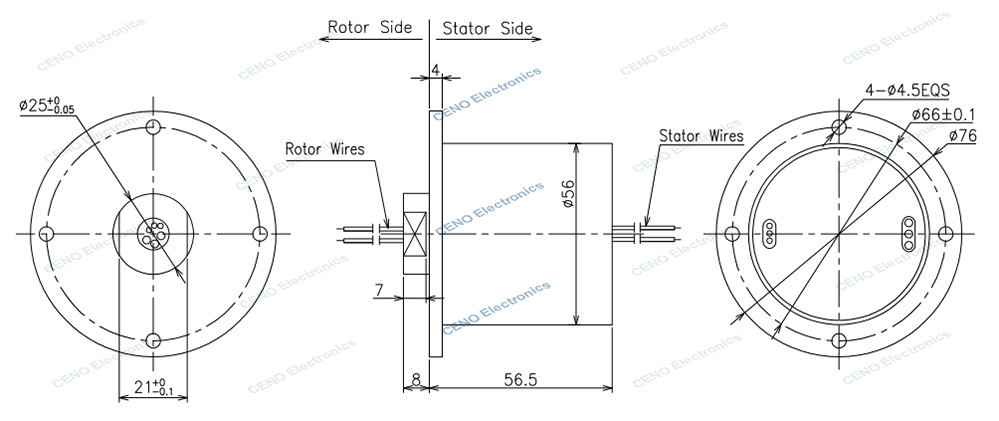

ECN000-03P3-03P2-IP65 Water-proof Slip Ring

ECN000-03P3-03P2-IP65 is CENO water-proof slip ring with protection grade IP65 and 6 circuits electric power, most parameters are optional for different application. Water proof slip ring is general term for slip rings used in special environments, such as high humidity, corrosion and underwater. The design and material selection of the protection level are related to the liquid composition, such as seawater, fresh water, oil etc are closely related. For more information please contact us.

Product Details

Specification

ECN000-03P3-03P2-IP65	Specification
Current & Circuits	3 circuits 16A; 3 circuits 10A
Rating Voltage	0 ~ 240VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~10rpm
Outer diameter	Ø56mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
